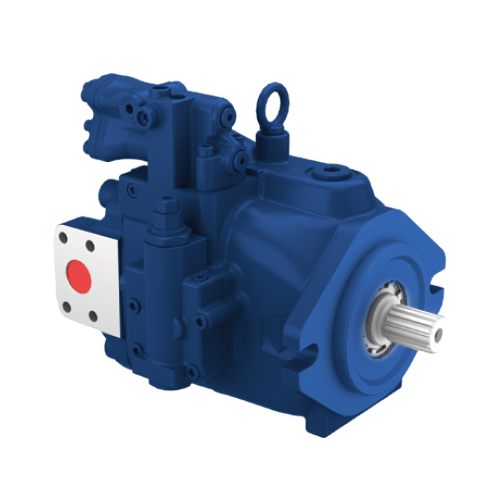

P6V Swashplate Piston Pump
WEITAI Axial Piston Swash Plate Pump suitable for systems requiring variable speeds and loads, such as those found in construction machinery, industrial equipment, and mobile applications.
Key Features
Compact structure ,low noise,high power
Axial piston pump of swashplate design for applications in an open circuit
Hydraulic servo with programmable control,high control accuracy
High-pressure and large-displacement piston pump with a maximum pressure exceeding 50MPa
Technical Specification.
Specifications
Size18 28 35 47 65 76 85   105
Displacement(cc/rev)18 28 35 47 65 76 85 104.3
SpeedRatedfrpm)3300 3000 2850 2700 2600 2400 2400 2200
Max(rpm)3900 3600 3400 3250 3140 3000 3000 2600
Min(rpm)600
PressureRated(bar)300 300 300 320 320 320 320   350
Peak(ba)320 320 320 350 350 350 350   400
Case
pressure
(Relative)
Rated(bar)
Peak(ba)
Suction
pressure
(Absolute)
Rated(bar)
Oil viscosity≤30mm²/s
Peak(bar)
Case oil filling volume (L)0.4 0.55 0.55 0.6 0.65 0.8 0.9   1
Oil  viscosity(mm²/s)10~1000,optimal range 16~36
Oil temperature(℃)-20~100
Oil cleanliness20/18/15(ISO 4406)and above
Weight(kg)
Without auxiliary flange
15.9 17 18.7 21.5 25 28 33    45
