WEITAI Hydraulic

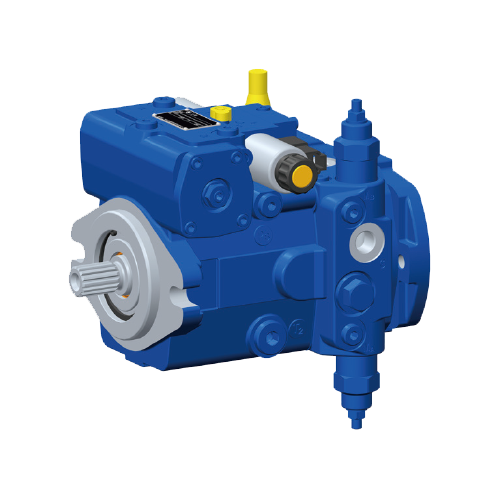

A10VG Swashplate Piston Pump
WEITAI Axial Piston Swash Plate Pump suitable for systems requiring variable speeds and loads, such as those found in construction machinery, industrial equipment, and mobile applications.
Key Features
Variable axial piston pump of swashplate design for applications in a close circuit
High pressure relief valves with integrated boost function
Integrated boost pump has functions to replenish and control oil
Large variety of controls
Technical Specification.
Specifications
Displacement
(mL/r)
Nominal pressure
(bar)
Max.pressure
(bar)
Nominal speed
(r/min)
Max.speed
(r/min)
Max.power
(KW)
Weight
(kg)
28 300 350 3900 4200 54.6 25
45 3300 3550 75.9 27
55 250 350 3000 3200 93.8 28
