WEITAI Hydraulic

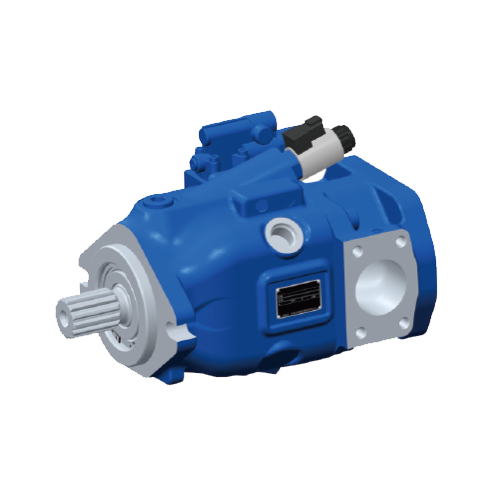

A10V(S)O(52/53) Swashplate Piston Pump
WEITAI Axial Piston Swash Plate Pump suitable for systems requiring variable speeds and loads, such as those found in construction machinery, industrial equipment, and mobile applications.
Key Features
Axial piston pump of swashplate design for applications in an open circuit
Large variety of controls
Low noise level, quick response
Good power-to-weight ratio
Technical Specification.
Specifications
Displacement
(mL/r)
Nominal
pressure
(bar)
Max.pressure
(bar)
Nominal speed
(r/min)
Max.speed
(r/min)
Max.power
(KW)
Weight
(kg)
28 250 315 3000 3600 35 15
45 2600 3120 49 18
60/632600 3140 65/6822
72 2600 3140 77 22
100 320 350 2000 2400 106 43
110 2000 2400 116 43
130 1800 2000 124 45
