Technical Specification.

Specifications

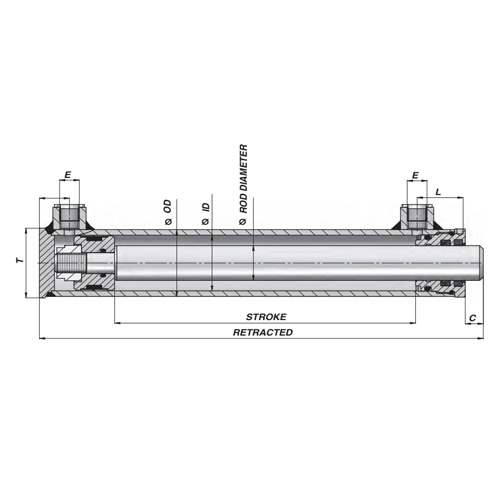

MODEL	BORE & STROKE	ROD Dia	RETRACKED	EXTENDED	∅ P	Ports	WEIGHT
WDF40100	40X100	20	300	400	16.2	1/4”	2.8
WDF40150	40X150		350	500			3.2
WDF40200	40X200		400	600			3.6
WDF40250	40X250		450	700			4
WDF40300	40X300		500	800			4.4
WDF40350	40X350		550	900			4.8
WDF40400	40X400		600	1000			5.2
WDF40450	40X450		650	1100			5.6
WDF40500	40X500		700	1200			6
WDF50100	50X100	25	310	410	20.25	3/8”	3.8
WDF50150	50X150		360	510			4.4
WDF50200	50X200		410	610			4.9
WDF50250	50X250		460	710			5.4
WDF50300	50X300		510	810			6
WDF50350	50X350		560	910			6.4
WDF50400	50X400		610	1010			7
WDF50450	50X450		660	1110			7.5
WDF50500	50X500		710	1210			8
WDF60100	60X100	30	350	450	20.25	3/8”	5.9
WDF60150	60X150		400	550			6.6
WDF60200	60X200		450	650			7.3
WDF60250	60X250		500	750			8
WDF60300	60X300		550	850			8.6
WDF60350	60X350		600	950			9.3
WDF60400	60X400		650	1050			10
WDF60450	60X450		700	1150			10.7
WDF60500	60X500		750	1250			11.3
WDF70100	70X100	35	350	450	25.25	3/8”	7.2
WDF70150	70X150		400	550			8
WDF70200	70X200		450	650			8.8
WDF70250	70X250		500	750			9.7
WDF70300	70X300		550	850			10.5
WDF70350	70X350		600	950			11.5
WDF70400	70X400		650	1050			12.2
WDF70450	70X450		700	1150			13
WDF80500	70X500		750	1250			13.8
WDF80200	80X200	40	480	680	30.25	1/2"	12.8
WDF80250	80X250		530	780			13.8
WDF80300	80X300		580	880			15
WDF80400	80X400		680	1080			17.2
WDF80500	80X500		780	1280			19.5
WDF80600	80X600		880	1480			21
WDN40100	40X100	20	200	300	32	1/4”	1.8
WDN40150	40X150		250	400			2.1
WDN40200	40X200		300	500			2.5
WDN40250	40X250		350	600			2.8
WDN40300	40X300		400	700			3.1
WDN40400	40X400		500	900			4.5
WDN40500	40X500		600	1100			6
WDN50100	50X100	25	200	300	36	3/8”	2.5
WDN50150	50X150		250	400			3
WDN50200	50X200		300	500			3.5
WDN50250	50X250		350	600			4
WDN50300	50X300		400	700			4.4
WDN50400	50X400		500	900			5.3
WDN50500	50X500		600	1100			6.2
WDN60100	60X100	30	220	320	39	3/8”	3.8
WDN60150	60X150		270	420			4.4
WDN60200	60X200		320	520			5
WDN60250	60X250		370	620			5.5
WDN60300	60X300		420	720			6.2
WDN60400	60X400		520	920			7.3
WDN60500	60X500		620	1120			8.5
WDN70100	70X100	35	220	320	39	3/8”	4.9
WDN70150	70X150		270	420			5.6
WDN70200	70X200		320	520			6.3
WDN70250	70X250		370	620			7.1
WDN70300	70X300		420	720			7.8
WDN70400	70X400		520	920			9.3
WDN80500	70X500		620	1120			10.8
WDP40100	40X100	20	300	400	16	1/4”	2.8
WDP40150	40X150		350	500			3.2
WDP40200	40X200		400	600			3.6
WDP40250	40X250		450	700			4
WDP40300	40X300		500	800			4.4
WDP40350	40X350		550	900			4.8
WDP40400	40X400		600	1000			5.2
WDP40450	40X450		650	1100			5.6
WDP40500	40X500		700	1200			6
WDP50100	50X100	25	310	410	20	3/8”	3.8
WDP50150	50X150		360	510			4.4
WDP50200	50X200		410	610			4.9
WDP50250	50X250		460	710			5.4
WDP50300	50X300		510	810			6
WDP50350	50X350		560	910			6.4
WDP50400	50X400		610	1010			7
WDP50450	50X450		660	1110			7.5
WDP50500	50X500		710	1210			8
WDP60100	60X100	30	350	450	25	3/8”	5.9
WDP60150	60X150		400	550			6.6
WDP60200	60X200		450	650			7.3
WDP60250	60X250		500	750			8
WDP60300	60X300		550	850			8.6
WDP60350	60X350		600	950			9.3
WDP60400	60X400		650	1050			10
WDP60450	60X450		700	1150			10.7
WDP60500	60X500		750	1250			11.3
WDP70100	70X100	35	350	450	25	3/8”	7.2
WDP70150	70X150		400	550			8
WDP70200	70X200		450	650			8.8
WDP70250	70X250		500	750			9.7
WDP70300	70X300		550	850			10.5
WDP70350	70X350		600	950			11.5
WDP70400	70X400		650	1050			12.2
WDP70450	70X450		700	1150			13
WDP80500	70X500		750	1250			13.8
WDP80200	80X200	40	480	680	30	1/2"	12.8
WDP80250	80X250		530	780			13.8
WDP80300	80X300		580	880			15
WDP80400	80X400		680	1080			17.2
WDP80500	80X500		780	1280			19.5
WDP80600	80X600		880	1480			21
WDC40100	40X100	20	260	360	16.5	1/4”	2.8
WDC40150	40X150		310	460			3.2
WDC40200	40X200		360	560			3.6
WDC40250	40X250		410	660			4
WDC40300	40X300		460	760			4.4
WDC40350	40X350		510	860			4.8
WDC40400	40X400		560	960			5.2
WDC40450	40X450		610	1060			5.6
WDC40500	40X500		660	1160			6
WDC50100	50X100	25	280	380	20.25	3/8”	4.1
WDC50150	50X150		330	480			4.7
WDC50200	50X200		380	580			5.2
WDC50250	50X250		430	680			5.8
WDC50300	50X300		480	780			6.3
WDC50350	50X350		530	880			6.8
WDC50400	50X400		580	980			7.4
WDC50450	50X450		630	1080			7.9
WDC50500	50X500		680	1180			8.4
WDC60100	60X100	30	300	400	25.25	3/8”	6.3
WDC60150	60X150		350	500			7
WDC60200	60X200		400	600			7.7
WDC60250	60X250		450	700			8.4
WDC60300	60X300		500	800			9
WDC60350	60X350		550	900			9.7
WDC60400	60X400		600	1000			10
WDC60450	60X450		650	1100			11
WDC60500	60X500		700	1200			11.5
WDC70100	70X100	35	300	400	25.25	3/8”	7.6
WDC70150	70X150		350	500			8.5
WDC70200	70X200		400	600			9.4
WDC70250	70X250		450	700			10.1
WDC70300	70X300		500	800			11
WDC70350	70X350		550	900			11.5
WDC70400	70X400		600	1000			12.5
WDC70450	70X450		650	1100			13.5
WDC80500	70X500		700	1200			14.2
WDC80200	80X200	40	450	650	30.25	1/2"	14.2
WDC80250	80X250		500	750			15.3
WDC80300	80X300		550	850			16.5
WDC80400	80X400		650	1050			19
WDC80500	80X500		750	1250			21
WDC80600	80X600		850	1450			24.5
