WEITAI Hydraulic

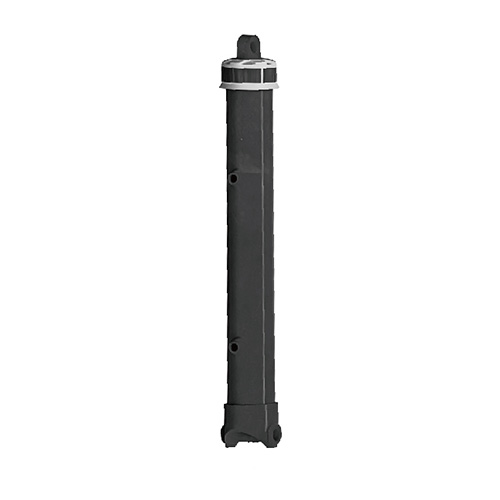

Inverted Telescopic Cylinder
WEITAI Hydraulic Cylinder is a mechanical actuator that is used to give a unidirectional force through a unidirectional stroke. It has many applications, notably in construction machinery, agricultrue machinery, and lifting machinery.
Key Features
Adopting Comprehensive simulation technology in R&D
In-house designed core components for reliable performance.
Automated production lines ensure consistent quality.
Complete and rigorous inspection process ensures component accuracy.
Customizable to meet your specific requirements.
Technical Specification.
Specifications
Part Number CapacityStroke Outside Diameter
WTC078337 TONS78"3.75"
WTC0903390"
WTC10833108"
WTC0784312 TONS78"4.50"
WTC0904390"
WTC10843108"
WTC12043120"

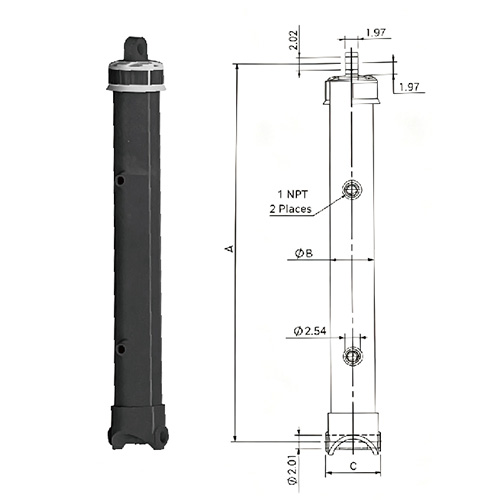

ItemWT ModelStage Outer DiameterMount Dimension(A)CStrokeMax Operating PressureWEIGHT
(LBS)
Single ActingWST 8-5-169 PP0058.46''49.37“9.45”168.35“3626PSI465
Single ActingWST 8-5-190 PP0058.46''53.9”9.45”189.01”3626PSI509
Single ActingWST 8-5-200 PP0058.46''56.08“9.45”198.85“3626PSI520
Single ActingWST 8-5-220 PP0058.46''59.8”9.45”222.48”3626PSI567
Single ActingWST 8-5-232 PP0058.46''61.77“9.45”232.32“3626PSI582
Single ActingWST 8-5-250 PP0058.46''68.07”9.45”252”3191PSI631
Single ActingWST 8-5-265 PP0058.46''69.65‘’9.45”269.72“2756PSI666
Single ActingWST 8-5-280 PP0058.46''71.22‘’9.45”279.57“2466PSI590
Double ActingWDT 8-5-169 PP0058.46''49.37“9.45”168.35“3626PSI465
Double ActingWDT 8-5-200 PP0158.46''56.08“9.45”198.85“3626PSI520
Double ActingWDT 8-5-220 PP0258.46''59.8”9.45”222.48”3626PSI567
Double ActingWDT 8-5-250 PP0358.46''68.07”9.45”252”3191PSI631
