WEITAI Hydraulic

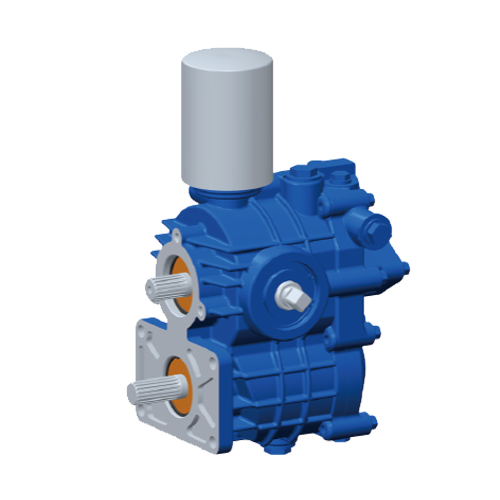

HST Hydrostatic transmission device
WEITAI Axial Piston Swash Plate Pump suitable for systems requiring variable speeds and loads, such as those found in construction machinery, industrial equipment, and mobile applications.
Key Features
Variable axial piston pump which integrates boost pump, relief valve and filtration, for closed circuit
Flow direction changes smoothly when the swashplate is moved through the neutral position
Large variety of controls
High pressure relief valves with integrated boost function
Technical Specification.
Specifications
Pump
displacement
(mL/r)
Motor
displacement
(mL/r)
Nominal
pressure
(bar)
Max.
pressure
(bar)
Input speed
(r/min)
Output speed
(r/min)
Max.power
(kW)
Weight
(kg)
18 18 210 350 3000 0~300030.6 17
28 28 47.6 20
37 37 62.9 24
42 42 71.4 27
45 45 76.5 28
48 48 79.2 38
56 56 92.4 38
60 60 99 38.5
