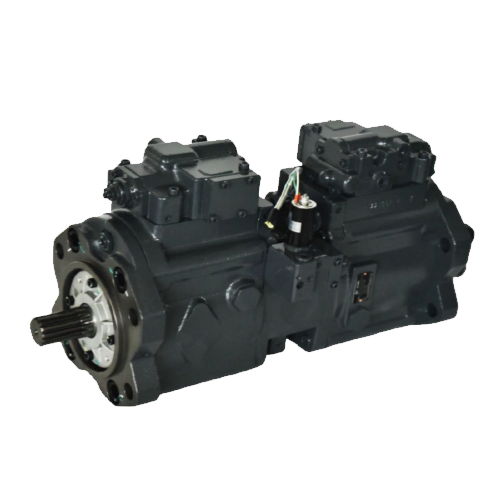

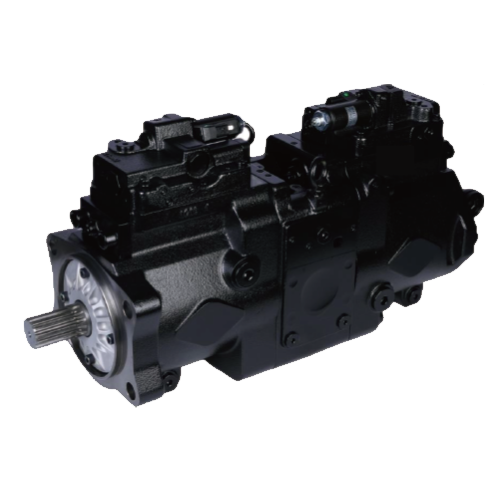

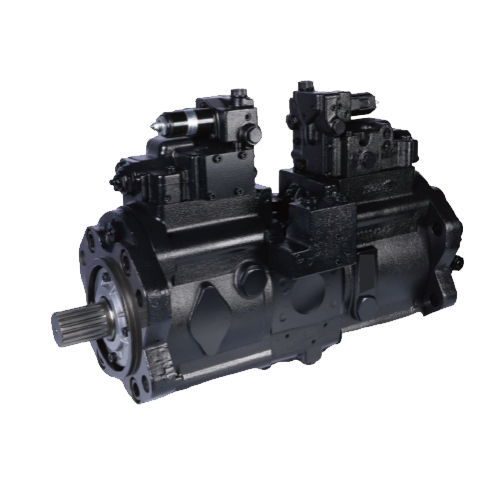

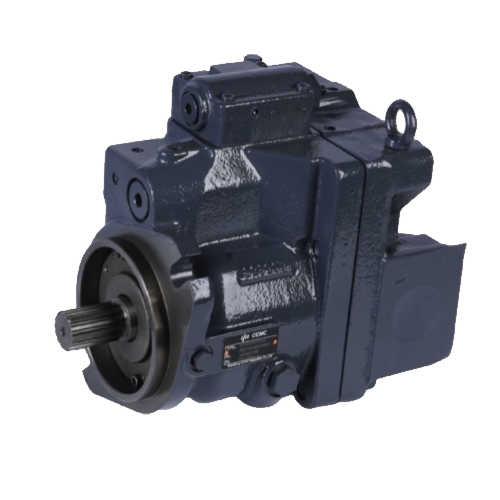

K3V/K5V/K7V Axial Piston Pump-WEITAI Group | Mobile Hydraulic Solution Manufacturer

Technical Specification.

Specifications

Model		K3VL63	K3VL80	K3VL112	K3VL140	K3VL180
Displacement	Main pump	63 mL/r	80 mL/r	112 mL/r	140 mL/r	180 mL/r
Rated pressure	Main pump	320 bar	320 bar	350 bar	350 bar	343 bar
Rated speed		2200 rpm	2200 rpm	2200 rpm	2200 rpm	1950 rpm
Max. flow	Main pump	138 LPM	185 LPM	250 LPM	320 LPM	351 LPM
Input Teeth		14	14 or 9	12 or 14	14 or 17	17
Application		6-7 Ton	8-10 Ton	10-12 Ton	13-15 Ton	13-15 Ton


Model		K3V63DT(P)	K5V80DT(P)	K3V112DT(P)	K3V140DT(P)	K3V180DT(P/H)
Displacement	Main pump	63x2 mL/r	80x2 mL/r	112x2 mL/r	140x2 mL/r	180x2 mL/r
	Gear pump	15 mL/r	15 mL/r	15 mL/r	15 mL/r	15 mL/r
Rated pressure	Main pump	343 bar	350 bar	350 bar	350 bar	350 bar
	Gear pump	39 bar	39 bar	39 bar	39 bar	39 bar
Rated speed		2200 rpm	2050 rpm	2000 rpm	2000 rpm	1950 rpm
Max. flow	Main pump	138.6x2 LPM	164x2 LPM	218x2 LPM	280x2 LPM	351x2 LPM
	Gear pump	33 LPM	30.8 LPM	30 LPM	30 LPM	29.5 LPM
Input Teeth		14	12	14	17	17
Application		13-15 Ton	15-18 Ton	20-25 Ton	27-35 Ton	39-45 Ton


Model		K5V140DT(P)	K5V160DT(H)	K5V200DT(P/H)	K5V212DPH	K5V230DPH
Displacement	Main pump	140x2 mL/r	160x2 mL/r	200x2 mL/r	212x2 mL/r	230x2 mL/r
	Gear pump	15 mL/r	15 mL/r	15 mL/r	15 mL/r	15 mL/r
Rated pressure	Main pump	350 bar	343 bar	343 bar	343 bar	343 bar
	Gear pump	39 bar	39 bar	39 bar	39 bar	39 bar
Rated speed		2000 rpm	2000 rpm	1800 rpm	1800 rpm	1800 rpm
Max. flow	Main pump	280x2 LPM	320x2 LPM	360x2 LPM	380x2 LPM	414x2 LPM
	Gear pump	30 LPM	30 LPM	30 LPM	30 LPM	30 LPM
Input Teeth		17	17	17	17	17
Application		27-35 Ton	35-45 Ton	45-50 Ton	50-55 Ton	55-65 Ton


Model		K7V63DTP	K7V125DTP	K7V140DTP	K7V180DTP	K7V240DPH
Displacement	Main pump	63x2 mL/r	125x2 mL/r	140x2 mL/r	180x2 mL/r	248x2 mL/r
	Gear pump	15 mL/r	15 mL/r	15 mL/r	15 mL/r	15 mL/r
Rated pressure	Main pump	350 bar	350 bar	350 bar	343 bar	343 bar
	Gear pump	39 bar	39 bar	39 bar	39 bar	39 bar
Rated speed		2200 rpm	2000 rpm	2000 rpm	1950 rpm	1800 rpm
Max. flow	Main pump	138.6x2 LPM	250x2 LPM	280x2 LPM	351x2 LPM	446x2 LPM
	Gear pump	33 LPM	30 LPM	30 LPM	29.5 LPM	30 LPM
Input Teeth		14	14 or 17	17	17 or 15	17
Application		10-13 Ton	20-25 Ton	25-30 Ton	35-45 Ton	55-65 Ton
