Snow Plow Cylinder

Snow Plow Cylinder

Snow Plow Cylinder

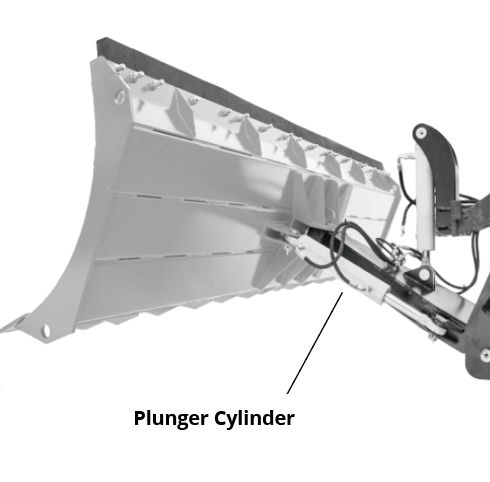

WEITAI snow plow hydraulic cylinders are designed for dependable performance in harsh winter conditions, supporting blade lifting, lowering, angling, and floating functions. Rated up to 3000 PSI, they feature pin-hole mountings at both ends and dual 1/4" ports in inline or 90‑degree configurations for easy installation. Built from high-strength steel with honed tubes, premium seals, and hard chrome plated rods, these cylinders offer excellent durability, corrosion resistance, and smooth operation at low temperatures.

Key Features: Based on the proven SPA series; single-acting or double-acting designs; interchangeable with most major snow plow brands; customizable as required; delivering reliable quality at a competitive cost

GET QUOTES Download

Technical Specification.

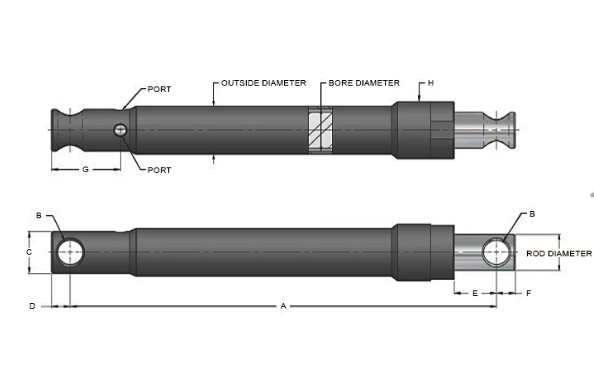

Specifications

PART
NUMBER

REPLACEMENT

BORE &
STROKE

OUTSIDE
ROD
DIAMETER

A

B

C

D E

F

G

H

PORT

WEIGHT
(LBS)

SPA-1510-0750

ARCTIC

1.75”×10.00”

2.00”

1.50”

17.00”

0.76”

1.75”

0.75”

1.68”

0.75”

2.75”

2.37”

1/4-NPT(2X)

12

SPA-1512-0750

ARCTIC

1.75”×12.00”

2.00”

1.50”

19.00”

0.76”

1.75”

0.75”

1.68”

0.75”

2.75”

2.37”

1/4-NPT(2X)

13

SPF-1510-1000

FISHER

1.75”×10.00”

2.00”

1.50”

17.00”

1.01"

1.75”

0.75”

1.68”

0.75”

2.75”

2.37”

1/4-NPT(2X)

11

SPF-1512-1000

FISHER

1.75”×12.00”

2.00”

1.50”

19.25”

1.01"

1.75”

0.75”

1.93”

0.75”

2.75”

2.37”

1/4-NPT(2X)

13

SPF-2016-1250

FISHER

2.25”×16.00”

2.50”

2.00”

23.25”

1.26”

2.25”

0.87”

1.75”

0.87”

2.75”

3.00”

1/4-NPT(2X)

27

SPM-1506-0625

MEYER

1.75”×6.00”

2.00”

1.50”

12.37”

0.63”

1.62”

0.75”

1.56”

0.75”

2.12”

2.37”

1/4-NPT

9

SPM-1510-0625

MEYER

1.75”×10.00”

2.00”

1.50”

16.18”

0.63”

1.62”

0.75”

1.62”

0.75”

2.12 ”

2.37”

1/4-NPT

14

SPM-1512-0625

MEYER

1.75”×12.00”

2.00”

1.50”

18.00”

0.63”

1.62”

0.75”

1.43”

0.75”

2.12 ”

2.37”

1/4-NPT

15

SPM-2012-0625

MEYER

2.25”×12.00”

2.50”

2.00”

18.00”

0.63”

1.62”

0.75”

0.75”

0.75”

2.25”

3.00”

1/4-NPT

24

SPW-1506-0750

WESTERN

1.75”×6.00”

2.00”

1.50”

13.00”

0.76”

1.75”

0.68”

1.37”

0.68”

2.75”

2.37”

1/4-NPT(2X)

11

SPW-1508-0750

WESTERN

1.75”×8.00”

2.00”

1.50”

15.25”

0.76”

1.75”

0.68”

1.62”

0.68”

2.75”

2.37”

1/4-NPT(2X)

12

SPW-1510-0750

WESTERN

1.75”×10.00”

2.00”

1.50”

17.25 ”

0.76”

1.75”

0.68”

1.62”

0.68”

2.75”

2.37”

1/4-NPT(2X)

14

SPW-1510-1000

WESTERN

1.75”×10.00”

2.00”

1.50”

17.00”

1.01”

1.75”

0.75”

1.43”

0.75”

2.75”

2.37”

1/4-NPT(2X)

14

SPW-2006-0750

WESTERN

2.25”×6.00”

2.50”

2.00”

13.18”

0.76”

2.25”

0.75”

1.56”

0.75”

2.75”

3.00”

1/4-NPT(2X)

18

SPW-2010-1000

WESTERN

2.25”×10.00”

2.50”

2.00”

17.25”

1.01”

2.25”

0.75”

1.62”

0.75”

2.75”

3.00”

1/4-NPT(2X)

22

SPW-2016-1000

WESTERN

2.25”×16.00”

2.50”

2.00”

23.31”

1.01”

2.25”

0.75”

1.68”

0.75”

2.56”

3.00”

1/4-NPT(2X)

31

SEAL TEMPERATURE RANGE:-30C/+100C(-22F/+212F) CYLINDER WITH 1 PORT=PORT IN LINE WITH PIN HOLE RETRACTED AND STROKE TOLERANCE±1/8”
SEAL MAXIMUM SPEED:3 FT/SEC
