WEITAI Hydraulic

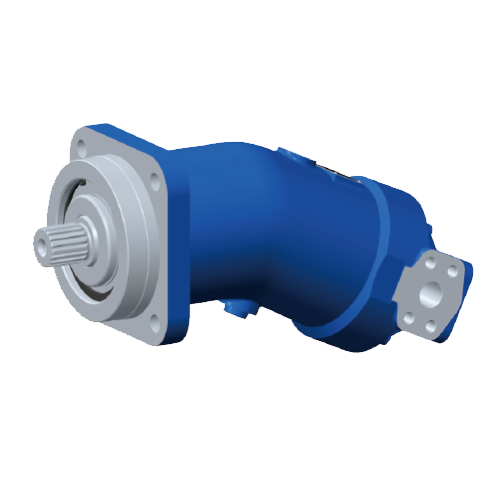

A2F Bent Axial Piston Pump
WEITAI Axial Piston Swash Plate Pump suitable for systems requiring variable speeds and loads, such as those found in construction machinery, industrial equipment, and mobile applications.
Key Features
Fixed displacement piston pump for open circuit
The flow is proportional to the drive speed and the displacementen
Technical Specification.
Specifications
Size10 12 23 28 45 55 63 80 107 160 250
  Max.
  Speed
(r/min)
Open
circuit
Inlet
pressure
(bar)
0.9 4700 3750 3750 2800 2850 2360 2550 2120 1900 1650 1400
5000 4000 4000 3000 3000 2500 2700 2240 2000 1750 1500
1.5 6000 4900 4900 3600 3550 3000 3300 2750 2450 2100 1850
Working
pressure
(bar)
Nominal300
Max.350
Weight(Kg)12 12 23 23 33 33 44 63 88
